12.1 inch multi-parameter patient monitor with CE

SNP9000N 12.1inch6 Multi-parameters Patient monitorFunction:1. Display: 12.1" color TFT screen, high resolution: 800×600 dpi;2. 6 Parameters: Standard - 5-lead ECG/HR, NIBP, SPO2, Temp., Resp., PR;Optional - 3/12-lead ECG, single/double IBP, double Temp.,Sun Tech NIBP, Masimo/Nellcor Spo2, ETCO2,BIS,CO;3. Patient Rang

Featured Products

SNP9000N 12.1inch
6 Multi-parameters Patient monitor
12.1 Inch Multi-Parameter ICU Patient Monitor with CE

Function:

1. Display: 12.1" color TFT screen, high resolution: 800×600 dpi;
2. 6 Parameters: Standard - 5-lead ECG/HR, NIBP, SPO2, Temp., Resp., PR;
Optional - 3/12-lead ECG, single/double IBP, double Temp.,
Sun Tech NIBP, Masimo/Nellcor Spo2, ETCO2,BIS,CO;
3. Patient Range: Suitable for Adult, Pediatric, Neonate;
4. Multi-display interface: Standard, Large font, Trend Coexist, OxyCRG dynamic,
7 full ECG waveforms;
5. Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish,
French, Russian, German, Italian);
6. Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP
records and 200 alarm event;
7. Battery: Built-in 2 hours rechargeable lithium battery, and battery volume
display. 4 hours rechargeable lithium battery (optional);
8. Network: TCP/IP networking platform, connect with central monitoring system.
Wifi central monitoring system (optional).

Feature:
1. Advance patient Manage: gender, full name, ID no., room no., bed no., weight,
height, blood type, paced or not, remakes;
2. Multi-parameter board: Separated parameter board, main board, ECG board,
SPO2 board, and NIBP board are independent;
3. Interface: Color, layout of each parameters can be set up by user need,
bed to bed view display(optional);
4. Fanless: Use special fanless cooling technology in the device to provide users
quiet environment;
5. Standby: Unique standby mode for energy saving and suspend monitoring;
6. Time delay: Time delay switch-off function to save data when monitor turn off
suddenly;
9. Easy software update: Users can update monitor software by themselves;
10. Analysis: Real time S-T segment analysis, and 20 type arrhythmic analysis;
SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic
Calculations;
11. Storage: external SD card slot enables memory extension(optional);
12. Data transfer: USB port to allow to transfer patient data to a PC (optional);
13. Special SINNOR F-6 Spo2 technology: which is as correct as Nellcor spo2 but
cheaper than it(optional);
14. Resistance to interference : Efficient resistance to interference of defibrillator
and HF knife;
15. Other optional: Touch Screen, Printer, Wall amount, VGA connect
Optional: Touch Screen, Printer, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2,
Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO,
ETCO2, Sun Tech NIBP, Wall mount, VGA, Wifi

Performance Specifications
Display:       12.1"color TFT
Rolling and refreshing waveform display
Resolution: 800×600
Multi display selectable including:
Large-font display
Trend coexist display
OxyCRG dynamic view display.
Bed-to-bed view display
Trace:             9 waveforms(7 ECG, 1 SPO2 and 1 RESP)
Sweep speed:12.5mm/s,25mm/s,50mm/s
Indicator:          Power/battery indicator light
QRS beep and alarm sound
Battery:           Rechargeable lead acid cell, 12v/4AH
Max.24 hour for charging, 4 hours for continue working
Trend:             Parameter graphic and tabular trends:
5s/piece,8 hours;
1min/piece,168 hours(24hour×7days)
5min/piece,1000 hours.

Storage:           NIBP: 1000 groups
Alarm: 200 groups
Full disclosure waveforms: 3600S
SD card external storage
Alarm:         User-adjustable High, Medium and Low limits 3-level
 Audible and visual alarm
Networking:        Connected to central monitoring system
TCP/IP netting platform
Recorder:         Build-in, thermal array
Plethysmogram caveform:2 channels
Record mode: manual, on alarm, time-defined
Recording width: 50mm
Printing speed: 50mm/s
Recording type:    Frozen waveform record
NIBP recall record
Trend table record
Alarm record
Fixed -time record

Standard parameter:
ECG:
Lead mode: 5 -lead(R,L,F,N,C)
Lead selection : I,II,III,avR,avL,avF,V
Waveform:     3 and 7 channel selectable
Gain selection: 0.5mm/mv,1mm/mv,2mm/mv
Sweep speed: 12.5mm/s;25mm/s;50mm/s
Heart rate range:    Adult: 15~300bpm;
Neonate/pediatric:15~350bpm
Accuracy: +1bpm or +1%,whichecer is greater
Resolution:     1bpm
Filter: surgery mode:1~20Hz
monitor model:0.5~40Hz
Diagnostic mode:0.05~130Hz
Scaling signal: 1mv,+3%
Protection:       withstand 4000VAC/50 voltage isolation against electrosurgical interference and defibrillation
Alarm range: 15~350bpm
S-T segment detecton:
Measurement range:  2.0mV~+2.0mV

 Alarm Range:         -2.0mV~ +2.0mV
Accuracy:            -0.8mV ~+0.8Mv
Error:               +0.02Mv

Arrhythmia analysis: YES

SPO2
Measurement range:        0~100%
Resolution:                1%
Accuracy:                 +2%(70-100%);0-69% unspecified
Alarm range               0~100%
Pluse Rate:
range:        20~300bpm
Resolution:   1bpm
Error:        +1bpm or +2%,whichever is greater

NIBP
Method:                   Digital Automatic oscillometric
Operation mode :            Manual/Automatic/continuous
Auto measurement time:      Adjustable(1~480min)
Measurement Unit:          mmHg/Kpa selectable
Measurement types:         Systolic, Diastolic, Mean
Measurement tange:
Range of Systolic pressure:    Adult: 40~270mmHg
Pediatric: 40~220mmHg
Neonate: 40~135mmHg
Range of mean pressure:      Adult: 20~235mmHg
Pediatric: 20~165mmHg
Neonate: 20~110mmHg
Range of diastolic pressure:   Adult: 10~215mmHg
Pediatric: 10~150mmHg
Neonate :10~100mmHg
Over-pressure protection:     Double safety protection
Resolution:                 1 mmHg
Alarm:                    Systolic.Diastolic,Mean

RESPIRATION
Method:                     Thoracic impedance
Measurement range:           Adult:7~120rpm;
Neonate/Pediatric:7~150rpm
Apnea alarm:                 YES,10~40s
Resolution:                   1rpm
Accuracy:                    +2rpm

TEMPERATURE
Compatible probe:             YSI or CYF
Measurement range:           5~50ºC
Resolution :                   0.1ºC
Accuracy:                    +0.1ºC
Refreshing time:               about 1
Average measuring time:        <10s

FHR
Transducer:   Multi-crystal, Pulsed Doppler
Measurement range:  50~210 BPM
Working frequency:   1 MHz
Strength:   <5mW/cm2
Signal processing:
special DSP system and modern recognization.
Resolution:   1BPM
Accuracy:    ±1BPM
Alarm Range:  High: 160,170,180,190 BPM,
Low: 100,110,120 BPM

FM
Manual button marking,
automatic FM identifying function

TOCO Measuring
Transducer:  External pressure transducer
Measurement range:  0~100 units
Resolution:  1rpm
Accuracy:  ±2 rpm

IBP
Channel: 2 channels
Range: -50-300mmHg
Resolution: 1mmHg
Accuracy: ±4mmHg(±4%)
Unit: mmHg, Kpa
Converter Sensitivity: 5mV/V/mmHg
Transducer sites: ART/PA/CVP/LAP/RAP/ICP

EtCO2( Sidertream CO2)
Measurement range:   0~99mmHg
Accuracy:   +2mmHg (0~40mmHg)
Sampling Range:   100ml/min
Sampling rate accuracy:   15%
Respiration rate:   0~120rmp
Respiration accuracy:  +2rmp (0~70rmp)
+5rmp (>70rmp)
Respiration time:   <240msec (10% to 90%)
Delay time:  <2s

EtCO2 (mainstreaam CO2)
Method:   Infrared Spectrum
Range:   0.0-10% (0~76%)
Resolution:   1mmHg (0.1%)
Accuracy:   <5%(±4.0 mmHg)
         Or<10%(of Readings)

Recorder:
Build-in, thermal array
Plethysmogram caveform:2 channels
Record mode: manual, on alarm, time-defined
Recording width: 50mm
Printing speed: 50mm/s
Recording type:  Frozen waveform record
NIBP recall record
Trend table record
Alarm record
Fixed -time record

Miscellaneous
Satety:
Safety level: Class I, type CF

Dimendion and Weight
Dimendion:      28*42*48cm
G.Weight:        <6.5KS

Operation Environment
Temperature:    Working 0~+40ºC
Transportation and storage -20~+60ºC
Humidity:       working≤85%
Transportation and storage≤93%
Power:          AC 100-240,50/60Hz
Patient range:    Neonate,pediatric,and adult patients

Accessories supplies
(1) 5 lead ECG cable
(2) 1 spo2 probes
(3) 1 NIBP prbe
(4) 1 temp probe
(5)1 ground connecting liner
(6) Chest electrode (10pcs/set)




other Related patient monitors offer for your reference:

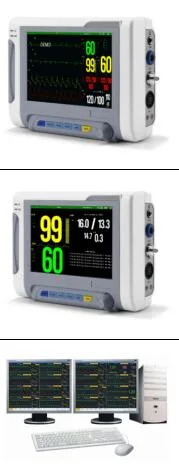

ModelPICDescriptionUnit Price
EXW/USD
Note
SNP9000W12.1 Inch Multi-Parameter ICU Patient Monitor with CE ICU monitor
15" Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$860Separated para board
SNP9000M+12.1 Inch Multi-Parameter ICU Patient Monitor with CE ICU monitor
15" Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$765Separated para board
SNP9000M12.1 Inch Multi-Parameter ICU Patient Monitor with CE bedside monitor
15" Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$574Six-in-one para board
SNP9000i12.1 Inch Multi-Parameter ICU Patient Monitor with CE Bedside monitor
15" Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$621Six-in-one para board
SNP9000V+12.1 Inch Multi-Parameter ICU Patient Monitor with CE
ICU monitor
12.1 "Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$621Separated para board
SNP9000V12.1 Inch Multi-Parameter ICU Patient Monitor with CE Bedside Monitor
12.1 "Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$502Six-in-one para board
SNP9000E+12.1 Inch Multi-Parameter ICU Patient Monitor with CE
ICU Monitor
12.1 "Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$550Separated para board
SNP9000N+12.1 Inch Multi-Parameter ICU Patient Monitor with CE
ICU Monitor
12.1 "Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$550Separated para board
SNP9000N12.1 Inch Multi-Parameter ICU Patient Monitor with CE



Bedside Monitor
12.1 "Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$454Six-in-one para board
SNP900
Bedside Monitor
12.1 "Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$394Low cost solution



SNP9000L+






Neonate Monitor
8.4" Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR
Neo ECG cable
NEO SpO2 sensor
NEO nibp cuff
US$621Newborn para board
   SNP9000L12.1 Inch Multi-Parameter ICU Patient Monitor with CE



Bedside Monitor
8.4" Standard 5 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$454Six-in-one para board
   SNP900L
vital Sign Monitor
8" 3 para
NIBP,SpO2,PR


US$335Blood oxygen-blood pressure-in-one para board
SNP8000C+ICU Monitor
8.4" Standard 6 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$621Separated para board
SNP8000CICU Monitor
8.4" Standard 6 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$454Six-in-one para board
SNV700012.1 Inch Multi-Parameter ICU Patient Monitor with CE




Vital Sign Monitor
7" Standard 6 Parameters
ECG, NIBP,SpO2,RESP, TEMP,HR


US$550Separated para board
SNV7000Vital Sign Monitor
7" Standard 2 Parameters
NIBP,SpO2(HR)


US$335Blood oxygen-blood pressure-in-one para board
SNP1000Centre Monitor System softwareUS$119Connected to 128 beds

Optional Parameter
Animal version monitorUS$55
Printer( 1 roll pap)US$92
Printer paperUS$1
Touch screenUS$55
Wireless central communication,WiFi cms portUS$92
F-6 SpO2 module( with accessories, newborn module)US$294
2-IBP(with 1 set accessory)US$221
12-lead ECG (with 10 lead ECG cable)US$221
Suntech blood pressure moduleUS$276
Masimo SpO2US$515
Nellcor SpO2US$515
Etco2(respironics)US$1,213
Open carbon dioxide portUS$55
VGAUS$22
Open AG portUS$368
Etco2(madeinchina mainstream)US$423
Etco2(madeinchina sidestream)US$441
Non-invasive cardiac output ICGUS$9,191
Anesthesia depth EEGUS$2,206
Anesthetic gas Multi-gas (domestic)US$3,493







Accessories
5-lead ECG cableUS$15
Neo 3-lead ECG cable with EXT cableUS$33
SpO2 extention cable (2 sector)US$11
Neo SpO2 sensor (2 sector)US$15
Paediatric SpO2 sensor (2 sector)US$11
Neo SpO2 sensor disposable (2 sector)US$6
Adult SpO2 sensor (2 sector)US$11
Adult SpO2 sensor (single)US$15
large adult NIBP cuffUS$15/pcs
Adult NIBP cuffUS$4/pcs
Paediatric NIBP cuffUS$4/pcs
Neo disposable NIBP cuffUS$6/pcs
NIBP extention tubeUS$6/pcs
Electrode/10pcsUS$1.5/set
TEMP sensorUS$6/pcs
Power cordUS$1.5/pcs
Li Battery(2H)US$22/pcs; each added 2H needs more 80
Ground LineUS$4/pcs
Rolling StandUS$147/set
Wall MountUS$92/set
12-lead ECG cableUS$37/pcs
ECG Bulb/6 pcsUS$22/set
Limb Clip/4pcsUS$22/set


Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
