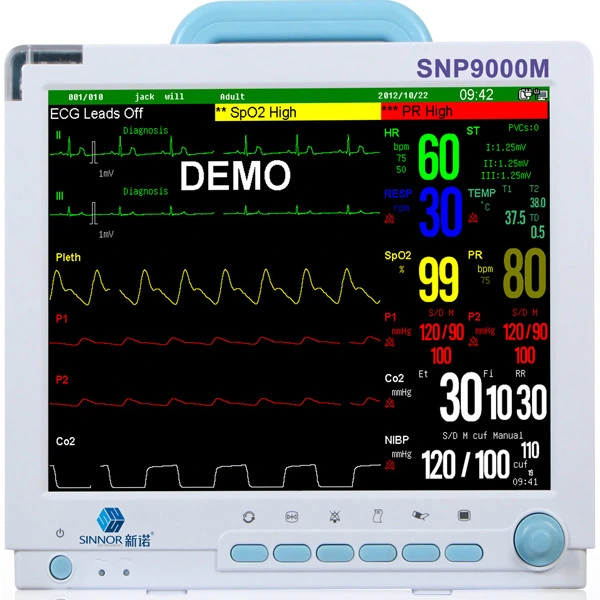

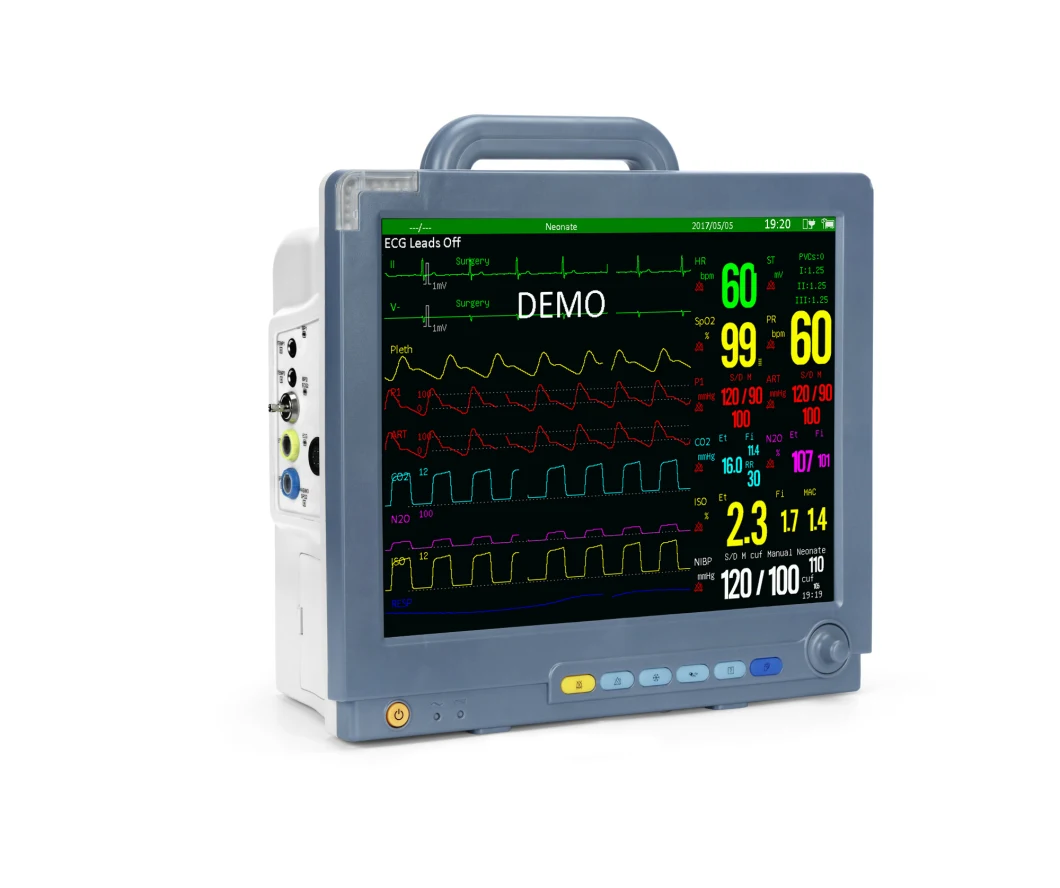

15inch Multi-parameters Patient Monitor
SNP9000M
Function:
Display: 15" color TFT screen, high resolution: 800×600 dpi;
6 Parameters: Standard - 5-lead ECG/HR, NIBP, SPO2, Temp., Resp., PR; Optional - 3/12-lead ECG, single/double IBP, double Temp., Sun Tech NIBP, Masimo/Nellcor Spo2, ETCO2,BIS,CO;
Patient Range: Suitable for Adult, Pediatric, Neonate;
Multi-display interface: Standard, Large font, Trend Coexist, OxyCRG dynamic, 7 full ECG waveforms;
Language: Built-in 8 language for choose (English, Chinese, Turkish, Spanish, French, Russian, German, Italian);
Review: Maximum 720h tabular and graphic trends of all parameters, 1000NIBP, records and 200 alarm event;
Battery: Built-in 2 hours rechargeable lithium battery, and battery volume display. 4 hours rechargeable lithium battery (optional);
Network: TCP/IP networking platform, connect with central monitoring system. Wifi central monitoring system (optional).
Feature:
Advance patient Manage: gender, full name, ID no., room no., bed no., weight, height, blood type, paced or not, remakes;
Multi-parameter board: Separated parameter board, main board, ECG board, SPO2 board, and NIBP board are independent;
Interface: Color, layout of each parameters can be set up by user need, bed to bed view display(optional);
Fanless: Use special fanless cooling technology in the device to provide users quiet environment;
Standby: Unique standby mode for energy saving and suspend monitoring;
Time delay: Time delay switch-off function to save data when monitor turn off suddenly;
Easy software update: Users can update monitor software by themselves;
Analysis: Real time S-T segment analysis, and 20 type arrhythmic analysis; SpO2 Pitch Tone Variation, Drug Dose Calculation and Hemodynamic Calculations;
Storage: external SD card slot enables memory extension(optional);
Data transfer: USB port to allow to transfer patient data to a PC (optional);
Special SINNOR F-6 Spo2 technology: which is as correct as Nellcor spo2 but cheaper than it(optional);
Resistance to interference : Efficient resistance to interference of defibrillator and HF knife;
Other optional: Touch Screen, Printer, Wall amount, VGA connect
Optional: Touch Screen, Printer, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2, Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO, ETCO2, Sun Tech NIBP, Wall mount, VGA, Wifi
Performance Specifications
Display
12.1"color TFT
Rolling and refreshing waveform display
Resolution: 800×600
Multi display selectable including:
Standard display

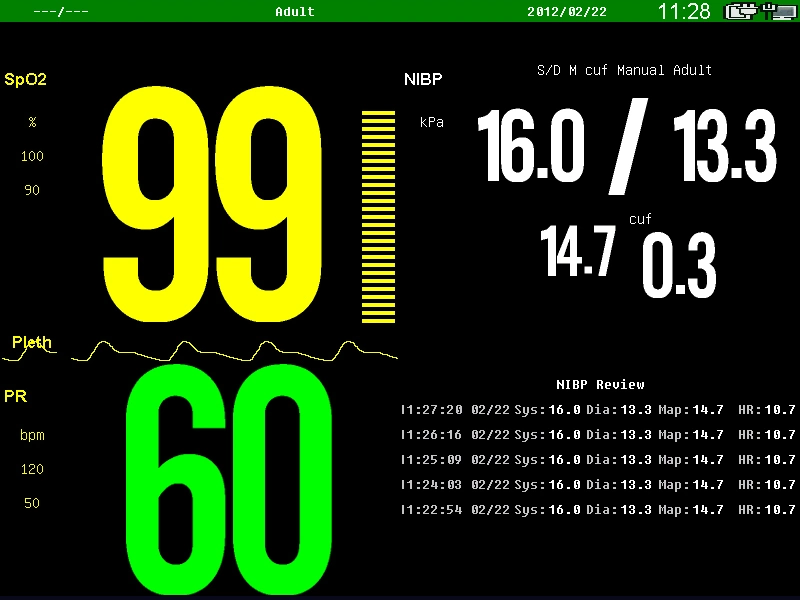

Large-font display
Trend coexist display
OxyCRG dynamic view display
7 full ECG waveforms display
Bed-to-bed view display(optional)
Trace
9 waveforms (7 ECG, 1 SPO2 and 1 RESP)
Sweep speed:6.25mm/s, 12.5mm/s,25mm/s,50mm/s
Indicator
Power/battery indicator light
QRS beep and alarm sound
Battery
Rechargeable lithium battery, 12v/4AH
Max.24 hour for charging, 2 hours for continue working
Trend
Parameter graphic and tabular trends:
5s/piece, 8 hours;
1min/piece,168 hours(24hour×7days)
5min/piece, 1000 hours.
Storage
NIBP: 1000 groups
Alarm: 200 groups
SD card external storage (optional)
Alarm
User-adjustable High, Medium and Low limits 3-level
Audible and visual alarm
Networking
Connected to central monitoring system
TCP/IP netting platform
Wifi connector (optional)
Recorder
Build-in, thermal array
Plethysmogram caveform:2 /3 channels
Record mode: manual, on alarm, time-defined
Recording width: 50mm
Printing speed: 50mm/s
Recording type
Frozen waveform record
NIBP recall record
Trend table record
Alarm record
Fixed -time record
Standard parameter
ECG
Lead mode: 5 -lead(R, L, F, N, C) (3/12 lead ECG for optional)
Lead selection: I, II, III, avR, avL, avF, V
Waveform: 3 and 7 channel selectable
Gain selection: 0.5mm/mv,1mm/mv,2mm/mv
Sweep speed: 6.25mm/s;12.5mm/s;25mm/s;50mm/s
Heart rate range: Adult: 15~300bpm;
Neonate/pediatric: 15~350bpm
Accuracy: +1bpm or +1%, which is greater
Resolution: 1bpm
Filter: surgery mode: 1~20Hz
Monitor model: 0.5~40Hz
Diagnostic mode: 0.05~130Hz
Scaling signal: 1mv, +3%
Protection: withstand 4000VAC/50 voltage isolation against electrosurgical interference and defibrillation
Alarm range: 15~350bpm
S-T segment detection:
Measurement range: 2.0mV~+2.0mV
Alarm Range: -2.0mV~ +2.0mV
Accuracy: -0.8mV ~+0.8Mv
Error: +0.02Mv
Arrhythmia analysis: YES
SPO2
Measurement range: 0~100%
Wave speed: 12.5mm/s;25mm/s
Resolution: 1%
Accuracy: +2% (70-100%); 0-69% unspecified
Alarm range 0~100%
Lower perfusion situation
Pulse Rate(PR)
Range: 20~300bpm
Resolution: 1bpm
Error: +1bpm or +2%, whichever is greater
NIBP
Method: Digital Automatic oscillometric
Operation mode : Manual/Automatic
Auto measurement time: Adjustable (1~720min)
(1,2,3,4,5,10,15,30,60,90,120,240,480,720min)
Measurement Unit: mmHg/Kpa selectable
Measurement types: Systolic, Diastolic, Mean
Measurement Range:
Range of Systolic pressure: Adult: 40~270mmHg
Pediatric: 40~220mmHg
Neonate: 40~135mmHg
Range of mean pressure: Adult: 20~235mmHg
Pediatric: 20~165mmHg
Neonate: 20~110mmHg
Range of diastolic pressure: Adult: 10~215mmHg
Pediatric: 10~150mmHg
Neonate: 10~100mmHg
Over-pressure protection: Double safety protection
Resolution: 1 mmHg
Alarm: Systolic, Diastolic, and Mean
RESPIRATION
Method: RA-LL impedance
Measurement range: Adult: 7~120rpm;
Neonate/Pediatric: 7~150rpm
Apnea alarm: YES, 10~40s
Resolution: 1rpm
Accuracy: +2rpm
TEMPERATURE
Compatible probe: YSI or CYF
Measurement range: 5~50ºC
Resolution: 0.1ºC
Accuracy: +0.1ºC
Refreshing time: about 1
Average measuring time: <10s
Others
Safety:
Safety level: Class I, type CF
Dimension and Weight
Dimension: 28*42*48cm
G.W: <6.5KS
Operation Environment
Temperature: Working 0~+40ºC
Transportation and storage -20~+60ºC
Humidity: working≤85%
Transportation and storage≤93%
Power: AC 100-240, 50/60Hz
Standard Accessories supplies
1. 5 lead ECG cable---------------------------------------- 1set
2. Adult Spo2 probe-------------------------------- ------ 1set
3. Adult NIBP Cuff and extension tube--------------- 1set
4. Temp probe---------------------------------------------- 1set
5. Ground connecting liner------------------------------ 1set
6. ECG Chest electrode (10pcs/pack)----------------- 1pack
7.2200mA lithium battery------------------------------- 1PCS
